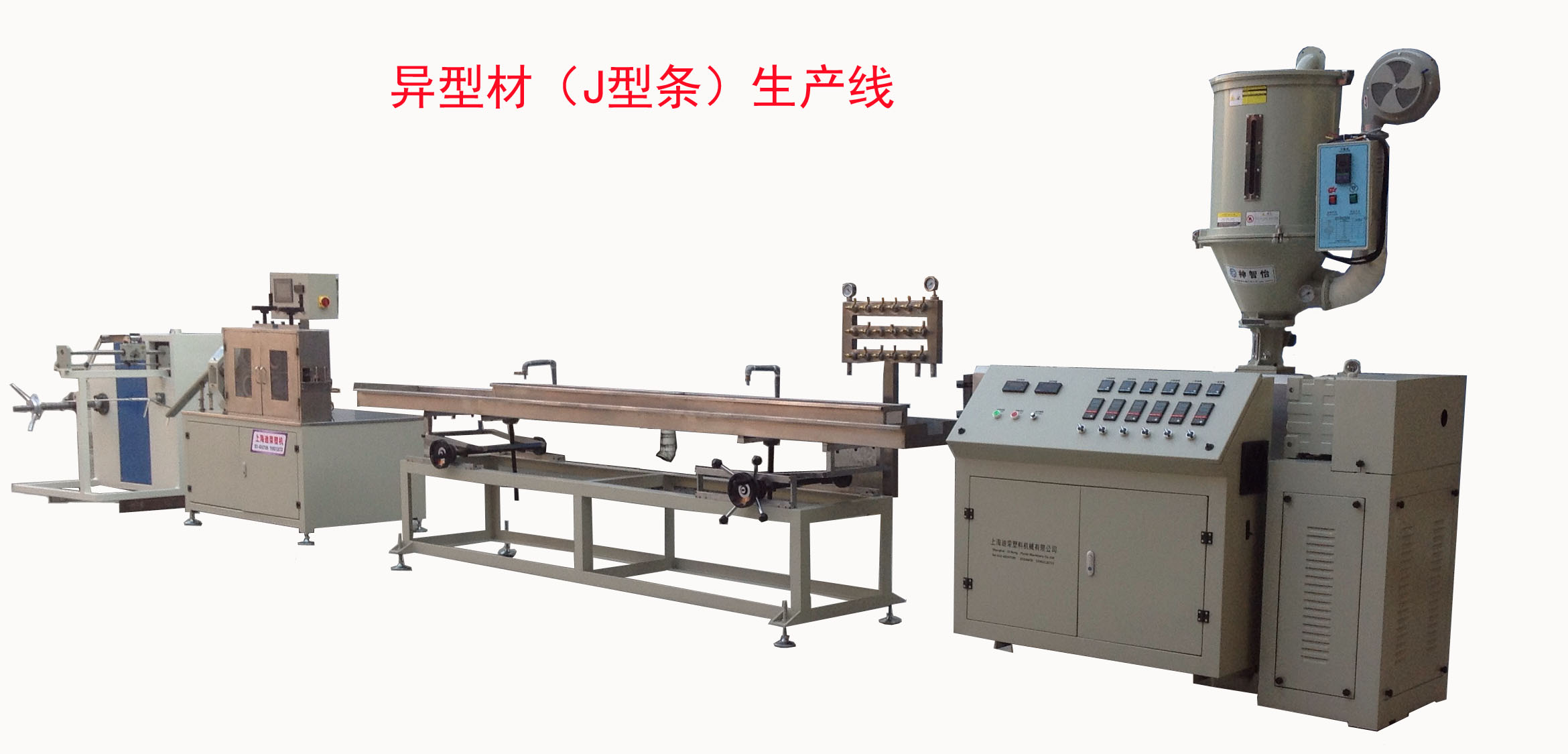

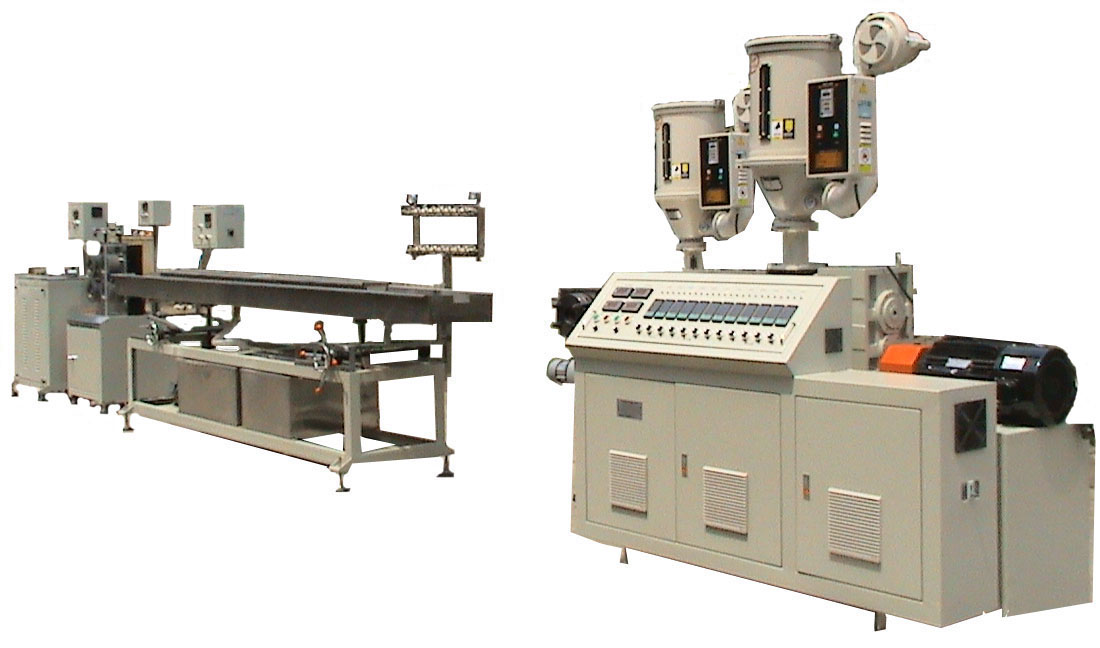

該機組由精密型擠出機、不銹鋼定型水箱、精密型牽引機、 自動切割機組成。
該機組現主要應用于汽車制造業中配套的各種異型材，如門窗上的嵌條，汽車座椅中的各種型材，雨刮器底座等。
該機組可以由單機或兩臺以上共擠。
This unit consists of precision extrusion machine, stainless steel water tank, precision type traction machine, automatic cutting machine.
The unit is mainly used on all kinds of supporting special material in the automobile manufacturing industry such as the strip on doors and windows, various profiles in the vehicle seat, the wiper base etc.
The unit can be a single or more than two sets of extrusion.
|
機 型 Model |
螺桿直徑 Screw dia |
電機功率 Motor power |
真空定型水箱 Vacuum calibrating tank |
真空泵功率 Vacuum pump power |
水泵功率 Pump power |
牽引功率 Traction power |
牽引速度 Traction speed |
切割功率 Cutting power |
|
SJ30x30 |
30 |
YVP-6-4kw |
5000mm |
2.2 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ45x30 |
45 |
YVP-6-11kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ50x28 |
50 |
YVP-6-15kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
|
SJ60x28 |
60 |
YVP-6-18.5kw |
5000mm |
3 kw |
2.2kw |
0.75kw |
0-17m/min |
0.37kw |
