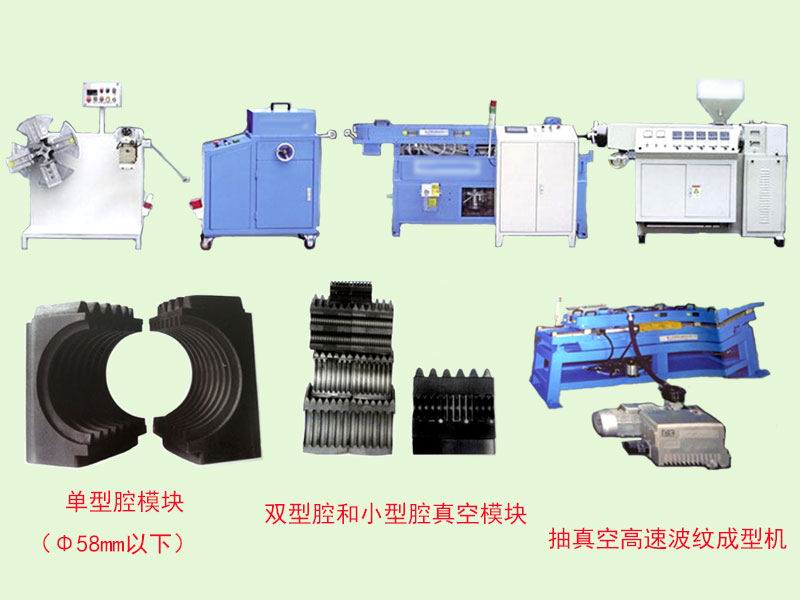

該機組主要采用SJ45-65單螺桿擠出機生產，適用于PVC、PE、PA等原料。整條生產線由擠出機、機頭、高速波紋管成型輔機、波紋成型模具、雙工位自動收卷機、冷水機組成（特殊管材需要另配剖口機）。
This machine mainly USES the SJ series single screw extruder production, is suitable for PVC, PE, PA etc plastic raw materials.The whole production line consists of extruder, head, high-speed corrugated pipe forming machine, corrugated mold ing, double-position automatic winding machine Cold water machine(special pipes need to match of groove machine)
擠出機螺桿直徑：Φ45--Φ65mmscrew diameter：Φ45--Φ65mm
擠出機電機功率：7.5kw--22kwmotor power：7.5kw--22kw
擠出機螺桿轉速：screw rotation speed：9-90r/min
波紋管成型機功率：3.0kw--5.0kwMolding machine power:3.0kw--5.0kw
制管直徑：Φ58mm以下Pipe diameter:Φ58 under
成型速度：2-20m/minMolding speed：2-20m/min
模具規格：36*56.5*75mould specifications：36*56.5*75mm
冷卻方式：水冷Cooling way：Water cooled
